Contribute Your Dataset¶

You already have great data—the goal here is to turn it into a shareable, validated resource without guessing what to do next. Use this guide to understand the few decisions that matter and jump straight to the tools that help you make them.

High-Level Workflow¶

graph LR
    A[Your Data] --> B[Standardized Format]
    B --> C[Validated Dataset]
    C --> D[Community Resource]

    style A fill:#e3f2fd,stroke:#1e88e5,color:#0d47a1
    style B fill:#fff3e0,stroke:#fb8c00,color:#e65100
    style C fill:#e8f5e9,stroke:#43a047,color:#1b5e20
    style D fill:#c8e6c9,stroke:#2e7d32,color:#1b5e20

Think of the flow above as four conversations with the project: (1) confirm you can share the data, (2) turn it into the common table schema, (3) prove it passes validation, and (4) publish the package back to the community.

Detailed Contribution Workflow¶

The expanded flow spells out the same journey with the actual buttons you will click. Follow it top to bottom, or just open the section that matches where you are stuck—the links mirror the headings further down this page.

graph TD
    A[Start: Decide to contribute] --> B{Do you control data sharing rights?}
    B -->|No| Z[Pause: Resolve access or licensing]
    Z --> B
    B -->|Yes| C[Clone repo and install tools]
    C --> D[Review reference dataset and task_info fields]
    D --> D1["Register new base families if needed (manage_tasks.py)"]
    D1 --> E[Build conversion script from template]
    E --> F{Does conversion run cleanly?}
    F -->|No| E
    F -->|Yes| G[Export standardized parquet dataset]
    G --> H[Run validation suite - quick check]
    H --> I{Do validation reports show blocking issues?}
    I -->|Yes| J[Adjust conversion logic or validation ranges]
    J --> H
    I -->|No| K[Generate documentation - manage_dataset_documentation]
    K --> L[Review generated docs and checklist]
    L --> M[Create PR with dataset and documentation]
    M --> N[End]

    classDef intake fill:#e3f2fd,stroke:#1e88e5,color:#0d47a1
    classDef standard fill:#fff3e0,stroke:#fb8c00,color:#e65100
    classDef qa fill:#e8f5e9,stroke:#43a047,color:#1b5e20
    classDef share fill:#c8e6c9,stroke:#2e7d32,color:#1b5e20

    class A,B,Z intake
    class C,D,D1,E,F,G standard
    class H,I,J qa
    class K,L,M,N share

    click C "https://github.com/jmontp/LocoHub" "Open the LocoHub repository" _blank
    click D "#step-1-convert-to-a-table" "Conversion quickstart"
    click D1 "#manage-task-registry" "Task registry helper"
    click E "#pattern-a-folder-based" "Conversion patterns"
    click G "#step-2-validate-pythoncli" "Validation workflow"
    click H "#quick-validation-check" "Run the quick validation check"
    click J "#interactive-tuner" "Tune validation ranges visually"
    click K "#step-3-generate-documentation" "Generate documentation"
    click L "#ready-to-submit" "Review submission checklist"
    click M "https://github.com/jmontp/LocoHub/pulls" "Open pull requests on GitHub" _blank

When the validator says “go”¶

Treat the report like a final pre-flight check:

• Stride pass rates should look believable for every task; if dirty → clean drops are huge, explain why.
• No blocking errors remain—missing columns, NaN bursts, or unit mismatches must be fixed or intentionally documented.
• Any data you intentionally exclude has matching validation ranges or a note in the checklist.

If something fails, back up one box in the workflow and address it before rerunning the tool.

Quick Reference¶

Need a fast answer? Pick the scenario that matches your next move:

• 📁 Folder full of CSV trials → stitch tables into the schema
• 🗂️ MATLAB structs → flatten from structs to rows
• ⏱️ Time-series only → normalize to phase before exporting
• ✅ Already have a parquet → run validation + plots
• 🧭 New task name → update the shared registry
• 📦 Everything looks good → final checklist before opening a PR

Step 1 — Convert to a Table¶

Manage the task registry (manage_tasks.py)¶

• Use the helper when you need a brand-new base family (e.g., adding lateral_walk). Existing families and their pathology suffixes remain valid without registry edits.
• Pathology cohorts follow task_family_<pathology> (e.g., level_walking_stroke, run_pd). Keep suffixes lowercase snake_case and create explicit validation ranges for each cohort.
• Common commands:
• python contributor_tools/manage_tasks.py list --category phase
• python contributor_tools/manage_tasks.py add lateral_walk --category phase --description "Side-step gait cycles" --example-id lateral --notes "Segment heel strikes using lateral contact."
• python contributor_tools/manage_tasks.py delete demo_task

The CLI rewrites internal/config_management/task_registry.py for you. For cohort suffixes, copy the base ranges in interactive_validation_tuner.py as a starting point and retune them—validators will not fall back to the able-bodied defaults.

Required columns (minimal schema):

• subject, task, task_id, task_info, step, phase_ipsi
• Biomech variables follow: joint_motion_measurement_side_unit
• Examples: knee_flexion_angle_ipsi_rad, hip_flexion_moment_ipsi_Nm_kg

Constraints:

• 150 points/cycle; phase_ipsi in [0..100] (phase‑normalized)
• Angles in radians; joint moments mass‑normalized (Nm/kg); GRFs body‑weight normalized (BW)
• Sign conventions follow the Reference (e.g., flexion positive)
• Column names follow the standard naming: joint_motion_measurement_side_unit

Example dataset (CSV, 1000 rows): Download

Common conversion patterns

Pattern A — Folder-based tables¶

When your data is organized as per-trial CSVs in nested folders, use this pattern.

↑ Back to workflow

rows = []
for trial_folder in walk(root_dir):
  tables = load_all_tables(trial_folder)              # kinematics.csv, kinetics.csv, events.csv, etc.
  tables = standardize_column_names(tables)           # map to joint_motion_measurement_side_unit
  merged = merge_tables_on_keys(tables, keys=[cycle_id, phase_ipsi])
  assert check_phase_index(merged, expected=0..100, n=150)

  meta = read_metadata(trial_folder)                  # subject, task, task_id, task_info (speed, incline)
  merged = attach_metadata(merged, meta)
  rows.append(merged)

df = concat(rows)
ensure_minimal_schema(df, required=[subject, task, task_id, task_info, step, phase_ipsi])
save_parquet(df, 'your_dataset_phase.parquet')

import os, glob
import pandas as pd

def standardize_cols(df: pd.DataFrame) -> pd.DataFrame:
    mapping = {
        'KneeFlexion_rad': 'knee_flexion_angle_ipsi_rad',
        'HipMoment_Nm_kg': 'hip_flexion_moment_ipsi_Nm_kg',
        # ... add your mappings here
    }
    return df.rename(columns=mapping)

def build_task_info(speed, incline):
    return f"speed_m_s:{speed},incline_deg:{incline}"

rows = []
for trial_dir, dirs, files in os.walk('your_root'):
    kin = glob.glob(os.path.join(trial_dir, '*kinematics*.csv'))
    kin = pd.concat([standardize_cols(pd.read_csv(p)) for p in kin], ignore_index=True) if kin else None

    kinx = glob.glob(os.path.join(trial_dir, '*kinetics*.csv'))
    kinx = pd.concat([standardize_cols(pd.read_csv(p)) for p in kinx], ignore_index=True) if kinx else None

    if kin is None and kinx is None:
        continue

    # Merge on shared keys (adjust as needed)
    merged = kin
    if kinx is not None:
        keys = [c for c in ['cycle_id','phase_ipsi','step'] if c in kin.columns and c in kinx.columns]
        merged = pd.merge(kin, kinx, on=keys, how='outer')

    # If your raw tables do not expose a unique cycle identifier, merge on
    # ['phase_ipsi','step'] plus whatever per-cycle metadata your files provide.

    # Attach metadata (example: infer from folder names or a JSON file)
    subject = os.path.basename(os.path.dirname(trial_dir))
    task = os.path.basename(trial_dir)
    task_id = task
    task_info = build_task_info(speed=1.2, incline=0)

    merged['subject'] = subject
    merged['task'] = task
    merged['task_id'] = task_id
    merged['task_info'] = task_info

    rows.append(merged)

df = pd.concat(rows, ignore_index=True)
required = ['subject','task','task_id','task_info','step','phase_ipsi']
missing = set(required) - set(df.columns)
assert not missing, f"Missing required columns: {missing}"
df.to_parquet('your_dataset_phase.parquet', index=False)

rows = table();
rootDir = 'your_root';
d = dir(rootDir);
for i = 1:numel(d)
    if ~d(i).isdir || startsWith(d(i).name, '.'), continue; end
    trialDir = fullfile(rootDir, d(i).name);
    kinFiles = dir(fullfile(trialDir, '*kinematics*.csv'));
    kin = table();
    for k = 1:numel(kinFiles)
        T = readtable(fullfile(trialDir, kinFiles(k).name));
        % TODO: rename columns to standard names
        kin = [kin; T]; %#ok<AGROW>
    end
    kinxFiles = dir(fullfile(trialDir, '*kinetics*.csv'));
    kinx = table();
    for k = 1:numel(kinxFiles)
        T = readtable(fullfile(trialDir, kinxFiles(k).name));
        % TODO: rename columns to standard names
        kinx = [kinx; T]; %#ok<AGROW>
    end
    if isempty(kin) && isempty(kinx), continue; end
    if isempty(kinx)
        merged = kin;
    else
        keys = intersect(intersect({'cycle_id','phase_ipsi','step'}, kin.Properties.VariableNames), kinx.Properties.VariableNames);
        merged = outerjoin(kin, kinx, 'Keys', keys, 'MergeKeys', true);
    end
    % Attach metadata (example)
    merged.subject = repmat(string(d(i).name), height(merged), 1);
    merged.task = repmat(string(d(i).name), height(merged), 1);
    merged.task_id = merged.task;
    merged.task_info = repmat("speed_m_s:1.2,incline_deg:0", height(merged), 1);
    rows = [rows; merged]; %#ok<AGROW>
end
required = {'subject','task','task_id','task_info','step','phase_ipsi'};
assert(all(ismember(required, rows.Properties.VariableNames)), 'Missing required columns');
parquetwrite('your_dataset_phase.parquet', rows);

Pattern B — Hierarchical structure¶

For MATLAB structs or other hierarchical data formats (subject → task → task_info → data).

↑ Back to workflow

rows = []
S = load_structure(input)
for subject in S:
  for task in subject.tasks:
    for variant in task.variants:             # task_id or condition
      data = variant.data                      # arrays with cycles × phase × variables or flat table
      meta = variant.meta                      # speed, incline, etc.
      T = to_table(data)                       # ensure columns use standard names
      T.subject = subject.id
      T.task = task.name
      T.task_id = variant.id
      T.task_info = format_task_info(meta)
      rows.append(T)
df = concat(rows); save_parquet(df, 'your_dataset_phase.parquet')

import pandas as pd
from scipy.io import loadmat

mat = loadmat('umich_like_struct.mat', squeeze_me=True, struct_as_record=False)
S = mat['dataset']  # top-level struct
rows = []

def to_table(data_obj) -> pd.DataFrame:
    # Convert nested arrays/fields into a flat DataFrame
    # Map variable names to standard names here
    return pd.DataFrame(data_obj['table'])  # placeholder

for subj in S.subjects:
    for task in subj.tasks:
        for var in task.variants:
            T = to_table(var.data)
            T['subject'] = subj.id
            T['task'] = task.name
            T['task_id'] = var.id
            meta = var.meta  # dict-like
            task_info = f"speed_m_s:{meta['speed']},incline_deg:{meta['incline']}"
            T['task_info'] = task_info
            rows.append(T)

df = pd.concat(rows, ignore_index=True)
required = ['subject','task','task_id','task_info','step','phase_ipsi']
assert set(required).issubset(df.columns)
df.to_parquet('your_dataset_phase.parquet', index=False)

S = load('umich_like_struct.mat');
D = S.dataset; % top-level struct
rows = table();

% Helper that flattens a nested data object into a table with standard names
toTable = @(dataObj) struct2table(dataObj.table); % placeholder

for i = 1:numel(D.subjects)
    subj = D.subjects(i);
    for j = 1:numel(subj.tasks)
        task = subj.tasks(j);
        for k = 1:numel(task.variants)
            var = task.variants(k);
            T = toTable(var.data);
            T.subject = repmat(string(subj.id), height(T), 1);
            T.task    = repmat(string(task.name), height(T), 1);
            T.task_id = repmat(string(var.id), height(T), 1);
            meta = var.meta; % struct with speed, incline, etc.
            T.task_info = repmat("speed_m_s:" + string(meta.speed) + ",incline_deg:" + string(meta.incline), height(T), 1);
            rows = [rows; T]; %#ok<AGROW>
        end
    end
end
required = {'subject','task','task_id','task_info','step','phase_ipsi'};
assert(all(ismember(required, rows.Properties.VariableNames)), 'Missing required columns');
parquetwrite('your_dataset_phase.parquet', rows);

Pre‑processing (if time‑indexed)¶

↑ Back to workflow

If your data are time‑indexed (no phase_ipsi), add a phase‑normalization pass before building the final table.

for trial in trials:
  sig = load_signals(trial)
  events = detect_events(sig)                     # heel strikes / toe offs
  cycles = segment_cycles(sig, events)
  for c in cycles:
    phase, resampled = resample_to_150(c)         # phase 0..100, 150 points
    write_rows(phase, resampled, metadata)

import numpy as np

def resample_to_150(y, t, hs_t, next_hs_t):
    mask = (t >= hs_t) & (t < next_hs_t)
    t_seg, y_seg = t[mask], y[mask]
    phase = np.linspace(0, 100, 150)
    t_norm = (t_seg - t_seg[0]) / (t_seg[-1] - t_seg[0]) * 100
    y150 = np.interp(phase, t_norm, y_seg)
    return phase, y150

function [phase, y150] = resampleTo150(t, y, hs_t, next_hs_t)
mask = t >= hs_t & t < next_hs_t;
t_seg = t(mask); y_seg = y(mask);
phase = linspace(0,100,150);
t_norm = (t_seg - t_seg(1)) / (t_seg(end) - t_seg(1)) * 100;
y150 = interp1(t_norm, y_seg, phase, 'linear', 'extrap');
end

OpenSim pipeline (typical)¶

• Model prep: Scale model; verify marker sets and segment frames.
• Inverse Kinematics (IK): compute joint angles; export kinematics (.mot/.sto).
• External Loads → Inverse Dynamics (ID): apply GRFs; compute joint moments; export kinetics (.mot/.sto).
• Filtering: apply consistent filters to kinematics/kinetics; record cutoffs.
• Naming/signs: map OpenSim column names to standard joint_motion_measurement_side_unit; enforce sign conventions.
• Events → Phase: if time-indexed, detect HS/TO (e.g., GRF threshold) and resample cycles to 150 points (phase_ipsi 0–100).
• Normalization: convert joint moments to *_Nm_kg; GRFs to *_BW.
• Table build: add required columns (subject, task, task_id, task_info, step, phase_ipsi) and save parquet.
• Validate: run quick validator; iterate on mapping/signs/phase until remaining failures are understood or justified.

Tips: pick a consistent HS detector (e.g., vertical GRF threshold crossing), de‑spike signals before event detection, and verify a few cycles visually.

Step 2 — Validate (Python/CLI)¶

↑ Back to workflow

Quickly prove the dataset is well-formed before investing in docs.

Run the quick validator for pass/fail stats (optional plots):

python contributor_tools/quick_validation_check.py your_dataset_phase.parquet
python contributor_tools/quick_validation_check.py your_dataset_phase.parquet --plot

Optionally produce a filtered dataset of valid strides:

python contributor_tools/create_clean_dataset.py your_dataset_phase.parquet

Interpret results:

• Pass rates by task/feature; failures often indicate sign conventions, phase offsets, or unit issues.
• Fix at the source (sign flips, event alignment, unit conversions), regenerate parquet, and re-run validation.

Step 3 — Generate Documentation¶

↑ Back to workflow

After your dataset passes validation, generate the complete submission package:

python contributor_tools/manage_dataset_documentation.py add-dataset \
    --dataset converted_datasets/your_dataset_phase.parquet

The generator runs interactively—press Enter to accept the suggested defaults or pipe answers from a file/shell script if you want to automate the prompts. If the tool cannot summarize validation on its own, paste the output from python contributor_tools/quick_validation_check.py … into the generated markdown before you submit.

Need a fully scripted run? Supply a metadata file (YAML/JSON) and skip the prompts entirely:

python contributor_tools/manage_dataset_documentation.py add-dataset \
    --dataset converted_datasets/your_dataset_phase.parquet \
    --metadata-file docs/datasets/_metadata/your_dataset.yaml \
    --overwrite

Metadata files expect keys like display_name, short_code, description, year, institution, subjects, tasks, and optionally download_url, citation, protocol, notes, or date_added.

This tool will:

1. Prompt for metadata - Short code, description, institution, etc.
2. Run validation - Automatically validate and show results
3. Generate documentation - Create the dataset overview and validation report
4. Create submission checklist - List all files needed for your PR

Follow the interactive prompts to provide: - Display name and short code (e.g., UM21) - Dataset description and collection year - Institution/lab information - Number of subjects and tasks - Optional: download URL and citation

The tool creates: - docs/datasets/your_dataset.md - Dataset overview and metadata - docs/datasets/your_dataset_validation.md - Validation report (ranges + summaries) - docs/datasets/validation_plots/your_dataset/ - Plot directory (latest pass/fail images) - submission_checklist_your_dataset.txt - PR checklist

Need to tweak things later? - Refresh metadata/overview: python contributor_tools/manage_dataset_documentation.py update-documentation --short-code UM21 - Re-run validation and plots: python contributor_tools/manage_dataset_documentation.py update-validation --short-code UM21 - Start clean: python contributor_tools/manage_dataset_documentation.py remove-dataset --short-code UM21

Dataset Documentation Management Workflow¶

Once your dataset is listed, stick to these three commands:

• update-documentation — refresh the overview page and metadata; you’ll be prompted with existing values so you can press Enter to keep them.
• update-validation — rerun validation, regenerate plots, and snapshot the active ranges YAML after data tweaks.
• remove-dataset — wipe generated assets if you need to rebuild from scratch (re-run your converter before adding again).

Each command accepts --dataset to point at a new parquet (otherwise the tool uses the last path stored in metadata). Always preview with mkdocs serve before committing.

Previewing Your Documentation¶

After generating or updating documentation, always preview it locally:

# Serve the documentation website locally
mkdocs serve

# Then open http://localhost:8000 in your browser

What to check: - Your dataset page renders correctly at http://localhost:8000/datasets/your_dataset/ - Validation results display properly - Metadata fields are filled in - Mermaid flowcharts render without errors - Navigation links work

If you see any issues, fix them before submitting your PR. Common fixes: - Markdown formatting errors → Check for unclosed code blocks or tables - Missing metadata → Re-run manage_dataset_documentation.py add-dataset - Broken links → Use relative paths like ../reference/index.md

Ready to Submit¶

↑ Back to workflow

Pre-submission checklist¶

✅ Data Quality - Phase-normalized to 150 points per cycle - Correct units (radians, Nm/kg, BW) - Proper sign conventions - Validation report reviewed; pass-rate drops explained

✅ Required Files - converted_datasets/your_dataset_phase.parquet - Dataset file - docs/datasets/your_dataset.md - Generated documentation - docs/datasets/your_dataset_validation.md - Validation report - contributor_tools/conversion_scripts/your_dataset/ - Your conversion script

✅ Documentation Complete - All metadata fields filled - Validation results included - Citation information provided - Collection notes documented

Creating your Pull Request¶

1. Create a new branch:

   git checkout -b add-dataset-yourname


2. Add all required files: bash git add converted_datasets/your_dataset_phase.parquet git add docs/datasets/your_dataset.md git add docs/datasets/your_dataset_validation.md git add contributor_tools/conversion_scripts/your_dataset/

3. Commit with clear message:

   git commit -m "Add YourDataset 2024 phase-normalized dataset

   - N subjects, M tasks
   - Validation: pass rates + key findings
   - Includes level walking, stair tasks, etc."


4. Push and create PR:

   git push origin add-dataset-yourname


5. In your PR description, include:

6. Brief dataset summary
7. Validation results (copy from tool output)
8. Any special considerations
9. Tag maintainers for review

What maintainers will check¶

• Documentation completeness
• Validation results narrative (pass rates + explanations)
• Data format compliance
• Conversion script reproducibility

PR Review Process¶

After you submit your PR, here's what happens:

graph TD
    A[You submit PR with dataset + docs] --> B{Maintainer reviews PR contents}
    B -->|Missing files| C[Maintainer requests: List missing items]
    C --> D[You add missing files]
    D --> B

    B -->|All files present| E{Validation check}
    E -->|Quality concerns (large violations)| F{Documented and acceptable?}
    F -->|Not yet| G[Maintainer requests: Fix validation issues]
    G --> H[You fix conversion or document reasons]
    H --> B
    F -->|Yes - documented| I{Metadata review}

    E -->|No major concerns| I
    I -->|Incomplete| J[Maintainer requests: Complete metadata]
    J --> K[You update docs]
    K --> B

    I -->|Complete| L[PR approved!]
    L --> M[Merged: Dataset published!]

    classDef contributor fill:#e3f2fd,stroke:#1e88e5,color:#0d47a1
    classDef maintainer fill:#fff3e0,stroke:#fb8c00,color:#e65100
    classDef success fill:#e8f5e9,stroke:#43a047,color:#1b5e20
    classDef final fill:#c8e6c9,stroke:#2e7d32,color:#1b5e20

    class A,D,H,K contributor
    class B,C,E,F,G,I,J maintainer
    class L success
    class M final

Timeline: Most reviews complete within 3-5 business days. The maintainers will tag you if changes are needed.

Common Pitfalls¶

• Angles left in degrees (should be radians)
• Mixed subject vs subject_id (use subject)
• phase_percent used (should be phase_ipsi [0..100])
• Wrong ipsi/contra or sign conventions (angles/moments)
• Missing task_info (e.g., speed_m_s, incline_deg)
• Time-indexed data not normalized to phase (150 points)

Contributor Tools Guide¶

↑ Back to workflow

This section walks through every helper tool available in contributor_tools/. Each tool serves a specific purpose in the contribution workflow.

Before you begin: - Activate the repository's Python environment - Keep your phase-normalized dataset in converted_datasets/ (or provide an absolute path) - Run commands from the repository root so relative paths resolve correctly

Tool Overview¶

quick_validation_check.py — Fast Quality Scan¶

Use this first after you export a phase-normalized parquet file. It verifies naming conventions, basic structure, and stride-level validation statistics.

Usage:

python3 contributor_tools/quick_validation_check.py converted_datasets/your_dataset_phase.parquet

# With visual plots showing pass/fail distributions
python3 contributor_tools/quick_validation_check.py converted_datasets/your_dataset_phase.parquet --plot

# Check specific task and show plot
python3 contributor_tools/quick_validation_check.py converted_datasets/your_dataset_phase.parquet \
    --task level_walking --plot

Tips: - Only one --task can be supplied, and it must be paired with --plot - The script prints the variable naming audit up front—if it fails there, fix your column names - Exit code is non-zero if any task fails validation

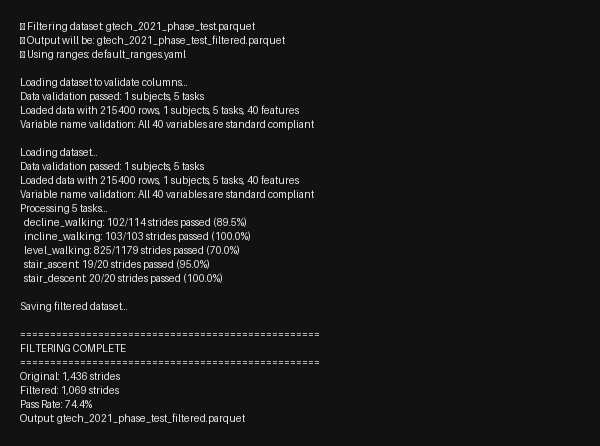

create_clean_dataset.py — Keep Only Passing Strides¶

After the quick check highlights problems, run the filter to drop the failing strides and produce a clean file for sharing.

Usage:

python3 contributor_tools/create_clean_dataset.py converted_datasets/your_dataset_phase.parquet

# Use custom validation ranges for special populations
python3 contributor_tools/create_clean_dataset.py converted_datasets/your_dataset_phase.parquet \
    --ranges contributor_tools/validation_ranges/elderly_ranges.yaml

Tips: - The tool automatically saves to *_clean.parquet alongside the input - It prompts before overwriting an existing file - Use --exclude-columns "col_a,col_b" to ignore auxiliary signals

manage_dataset_documentation.py — Generate Documentation & Submission Package¶

When your dataset is ready to submit, use this tool to generate complete documentation.

Usage:

python3 contributor_tools/manage_dataset_documentation.py add-dataset \
    --dataset converted_datasets/your_dataset_phase.parquet

Interactive Process: 1. Tool prompts for metadata (name, short code, institution, etc.) 2. Automatically runs validation and shows results 3. Generates standardized documentation in docs/datasets/ 4. Creates submission checklist with all required files 5. Saves checklist for your PR description

What it creates: - docs/datasets/your_dataset.md - Complete documentation with validation results - docs/datasets/validation_plots/your_dataset/ - Directory for plots - submission_checklist_your_dataset.txt - PR checklist and template

Tips: - Have your dataset information ready (subjects, tasks, institution) - Short codes are 2 letters + 2 digits (e.g., UM21, GT23) - Tool checks for short code conflicts automatically - Follow the generated checklist for your PR

Resetting Generated Docs¶

Need to start over? Use the remove-dataset helper:

python3 contributor_tools/manage_dataset_documentation.py remove-dataset \
    --short-code YOUR_CODE [--remove-parquet]

After the cleanup, rerun add-dataset (optionally with --metadata-file) to regenerate the overview, validation report, plots, and checklist.

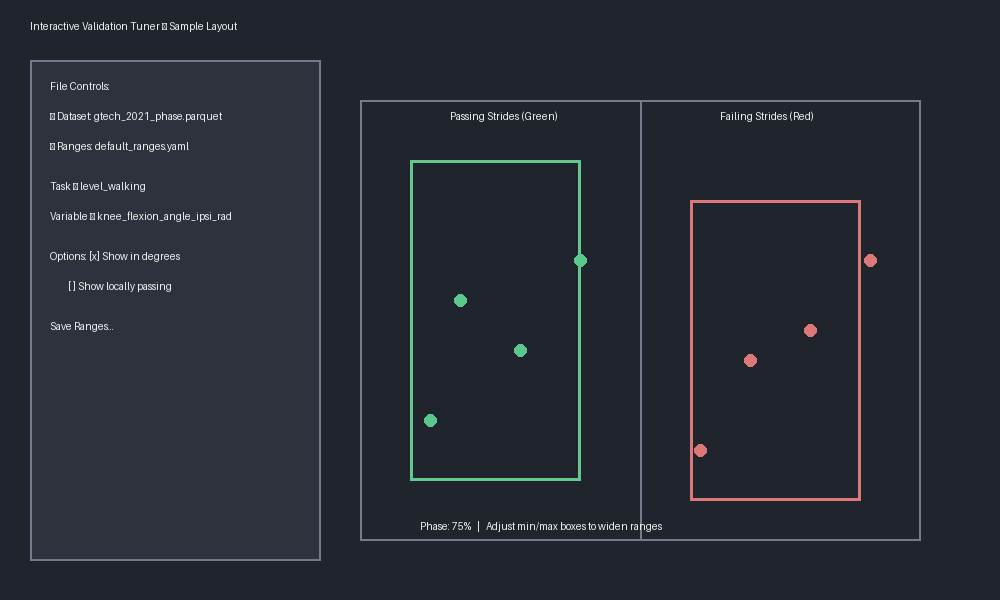

interactive_validation_tuner.py — Visual Range Editing¶

Launch this GUI to understand why a feature fails and to author new validation envelopes interactively.

Usage:

python3 contributor_tools/interactive_validation_tuner.py

The GUI will prompt for: 1. Dataset file selection 2. Validation ranges file selection 3. Task and variable to visualize

Interface Features: - Drag validation boxes: Click and drag edges to adjust min/max ranges - Real-time feedback: See pass/fail counts update immediately - Show Locally Passing: Yellow highlights strides passing current variable only - Show in Degrees: Convert radians to degrees for angular variables - Save Ranges: Export tuned ranges to new timestamped YAML

Tips: - For cohort suffixes (e.g., level_walking_stroke), load the able-bodied family as the initializer, save under a new filename, and retune—validators will only use the ranges you define for that suffix. - Start with kinematics (joint angles are most intuitive) - Use degree view for easier interpretation (e.g., 60° vs 1.047 rad) - Check all phases—some populations differ more at specific phases - Pair with validation report to iterate: tune → save → regenerate plots → repeat

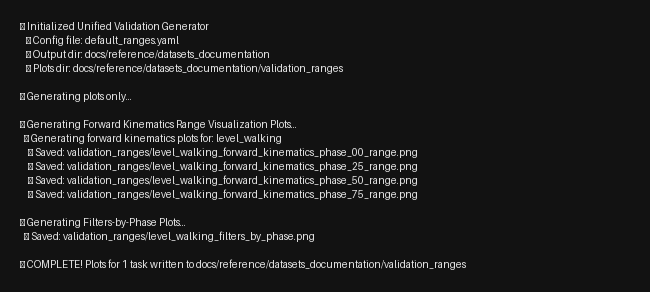

generate_validation_documentation.py — Refresh the Spec Package¶

This utility rebuilds the validation range reference pages and forward kinematics diagrams from a YAML config.

Usage:

# Preview plot generation for a single task
python3 contributor_tools/generate_validation_documentation.py \
    --plots-only --tasks level_walking

# Generate full documentation for custom ranges
python3 contributor_tools/generate_validation_documentation.py \
    --config contributor_tools/validation_ranges/elderly_ranges.yaml

Tips: - Point --config at an alternate YAML to document population-specific envelopes - All renders land in docs/reference/datasets_documentation/validation_ranges/

Validation Reference¶

↑ Back to workflow

Understanding Validation¶

Validation ensures your dataset meets biomechanical expectations and follows the standard format. The system checks:

1. Structure: 150 points per cycle, required columns present
2. Naming: Variables follow joint_motion_measurement_side_unit convention
3. Ranges: Values fall within expected biomechanical limits at each phase
4. Signs: Flexion positive, extension negative, etc.

Default vs Custom Ranges¶

Default ranges (contributor_tools/validation_ranges/default_ranges.yaml): - Generated from healthy adult populations - Cover standard locomotion tasks - Work for most typical datasets

Custom ranges needed for: - Special populations (elderly, children, clinical) - Pathological gait (neurological conditions, amputees) - Novel activities (sports, rehabilitation) - Equipment constraints (exoskeletons, prosthetics)

Creating Custom Validation Ranges¶

Method 1: Interactive Tuning (Recommended)¶

Use the visual tuner to adjust ranges based on your data:

python3 contributor_tools/interactive_validation_tuner.py
# Visually adjust ranges and save

Method 2: Statistical Generation¶

Generate ranges from your dataset's statistics:

import pandas as pd
import numpy as np
import yaml

df = pd.read_parquet('your_dataset_phase.parquet')

# Identify biomechanical value columns (everything beyond the minimal schema).
schema_cols = {'subject', 'task', 'task_id', 'task_info', 'step', 'phase_ipsi'}
value_cols = [c for c in df.columns if c not in schema_cols]

# Create a convenience phase index that maps 0..100 → 0..149.
df = df.assign(phase_index=(df['phase_ipsi'] / 100 * 149).round().astype(int))

ranges = {}
for task, task_data in df.groupby('task'):
    ranges[task] = {'phases': {}}

    for phase in (0, 25, 50, 75):
        phase_idx = int(round(phase / 100 * 149))  # 0-149 index
        phase_slice = task_data[task_data['phase_index'] == phase_idx]
        if phase_slice.empty:
            continue

        for var in value_cols:
            if var not in phase_slice.columns:
                continue
            mean = phase_slice[var].mean()
            std = phase_slice[var].std()
            ranges[task]['phases'].setdefault(str(phase), {})[var] = {
                'min': float(mean - 2.5 * std),
                'max': float(mean + 2.5 * std),
            }

with open('custom_ranges.yaml', 'w') as f:
    yaml.dump(ranges, f)

Common Validation Issues¶

References¶

• Reference
• Examples: UMich (MATLAB), GTech (Python)
