Reference¶

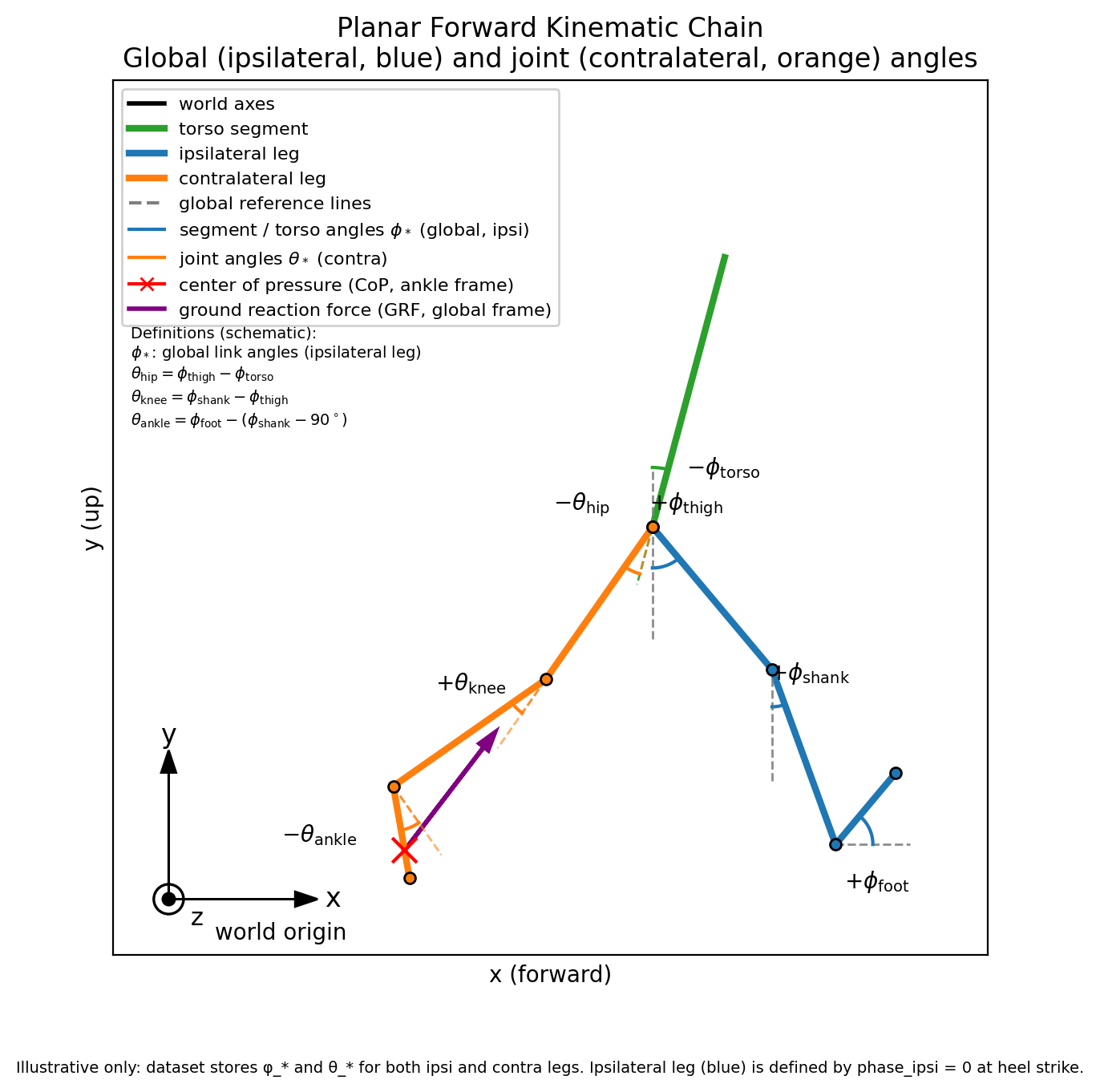

Planar Forward Kinematic Chain (Reference)¶

The planar leg model used for visualization and torque modeling follows this forward kinematic chain and reference frame:

Planar forward kinematic chain reference

Concise, complete description of what’s in the standardized data.

Data Formats¶

Format	File Pattern	Index	Purpose
Phase‑Indexed	`*_phase.parquet`	150 samples, 0–100%	Cross‑subject comparisons, averaging
Time‑Indexed	`*_time.parquet`	Seconds	Event detection, raw analysis

Phase-aligned exports apply to cyclic gait data. Event-driven or non-cyclic activities should favor the time-indexed format, optionally providing per-repetition segments through the step column.

Required Columns¶

Column	Required	Meaning
`subject`	Yes	Global unique ID (see Subject Naming)
`subject_metadata`	Optional	Demographics, key:value (e.g., `age:25,sex:M,height_m:1.75,weight_kg:70`)
`task`	Yes	Activity category (see Task Names)
`task_id`	Yes	Specific variant (see Task IDs)
`task_info`	Yes	Parameter string, key:value (see Task Metadata)
`step`	Yes	Cycle index within trial
`phase_ipsi`	Phase only	0–100, phase of ipsilateral limb (heel‑strike to heel‑strike)
`time_s`	Time only	Seconds from trial start

Task Names, IDs, and Metadata¶

The canonical list of task families lives in internal/config_management/task_registry.py. Update that module and this section whenever new tasks are introduced so that all tooling shares a single source of truth.

Task names (task) capture the high-level motion family. Use neutral categories that apply across datasets, such as level_walking, incline_walking, decline_walking, stair_ascent, stair_descent, run, walk_backward, sit_to_stand, stand_to_sit, step_up, step_down, jump, squats, and the catch-all functional_task for non-cyclic or miscellaneous movements. Append population/pathology suffixes only when the entire recording targets that cohort. Use the convention task_family_<pathology> (e.g., level_walking_stroke, run_pd, stair_descent_sci). Keep suffix tokens lowercase snake_case (stroke, pd, sci, tfa, tta, etc.).
Task IDs (task_id) describe the specific variant within the family, e.g., level, incline_5deg, decline_10deg, stair_ascent, stair_descent, sit_to_stand_short, jump_vertical. The exact vocabulary can differ by dataset, but it must remain stable inside a release.
Task metadata (task_info) is a comma-separated key:value string carrying numeric parameters and variant tags. Values should prefer SI units and be machine-readable.

Managing Task Families with the CLI¶

Use python contributor_tools/manage_tasks.py to add, delete, or list canonical task families without editing Python files by hand. Reach for the CLI when you introduce new base families that do not already exist in the registry. Examples:

python contributor_tools/manage_tasks.py list --category phase
python contributor_tools/manage_tasks.py add lateral_walk --category phase --description "Side-step gait cycles" --example-id lateral --notes "Segment heel strikes the same way as level_walking."
python contributor_tools/manage_tasks.py delete demo_task

Pathology or cohort variants follow the task_family_<pathology> convention but do not require separate registry entries. Instead, create dedicated validation ranges for each suffix (e.g., level_walking_stroke) so tooling can read the cohort-specific tolerances. Validators never fall back to the able-bodied family values; use the interactive tuner to seed a new ranges file with the base family as an initializer before adjusting to the cohort norms.

Common task_info keys

speed_m_s:<float>
treadmill:<true|false>
incline_deg:<float> (positive uphill, negative downhill)
step_height_m:<float> (stairs)
step_width_m:<float> (stairs)
surface:<string> (e.g., overground, treadmill)
footwear:<string> (e.g., barefoot, shoe)
assistance:<string> (e.g., none, handrail)
transition_from:<task> / transition_to:<task> (for mode switches)
turn_direction:<left|right|cw|ccw> (for turning strides)
variant:<string> (label specific instructions when no numeric parameter exists)

EMG-related keys

emg_normalization:<mvc|peak|raw> (how EMG was normalized)
mvc_trial:<string> (identifier of MVC trial used for normalization)
emg_muscles:<string> (comma-separated list of recorded muscles, e.g., ta,gas,sol)

Exoskeleton/assistive device keys

exo_state:<powered|worn_unpowered|no_exo> (exoskeleton condition)
exo_controller:<string> (e.g., hilo, proportional, impedance)
exo_assistance_level:<float> (percentage of bio moment, if applicable)
exo_joints:<hip|knee|hip_knee|ankle|...> (which joints are actuated)

Task Definitions¶

Task families fall into two groups. Phase-friendly tasks can be normalized to 150-sample strides when consistent events exist (and may also be exported in time if desired). Time-indexed tasks lack repeatable kinematic cycles or are best analyzed as continuous episodes. The tables below summarize each group; detailed notes follow.

Phase-Friendly Families¶

When segmented, these tasks are normalized to 150 samples per stride with phase_ipsi running 0–100%. Phase output is preferred because it enables stride averaging and template validation; however, a time-indexed export is acceptable when segmentation is unavailable.

Task	Typical behaviors	Example `task_id` values	Phase definition	Core metadata	Notes
`level_walking`	Overground/treadmill at steady speed	`level`, `level_fast`, `level_slow`	0% ipsilateral heel strike, 50% contralateral heel strike, 100% next ipsilateral heel strike	`speed_m_s`, `treadmill`, `surface`	Expect near-symmetric sagittal kinematics; large pelvis/trunk offsets flag coordinate issues.
`incline_walking`	Uphill ramps/treadmills	`incline_5deg`, `incline_10deg`	Same as level walking (HS-to-HS)	`incline_deg`, `treadmill`, `assistance`	Record grade and surface; uphill cycles show increased hip/knee flexion and trunk lean.
`decline_walking`	Downhill ramps/treadmills	`decline_5deg`, `decline_10deg`	Same as level walking with downhill HS events	`incline_deg` (negative), `treadmill`	Negative grades with delayed toe-off; expect larger eccentric knee moments.
`stair_ascent`	Ascending standard stairs	`stair_ascent`, numbered passes	0% ipsilateral contact on current step, 100% ipsilateral contact on next step	`step_height_m`, `step_number`, `assistance`	Document geometry and handrail use; monitor hip/knee angles >90°.
`stair_descent`	Descending stairs	`stair_descent`, numbered passes	0% upper-step contact, 100% lower-step contact for ipsilateral foot	`step_height_m`, `step_number`, `assistance`	Same metadata as ascent; eccentric control dominates mid-step.
`run`	Jogging/running with flight phases	`run_2_5_m_s`, `run_3_0_m_s`	0% ipsilateral foot contact, 100% next ipsilateral contact including flight	`speed_m_s`, `treadmill`, `surface`, `footwear`	Two GRF peaks with flight intervals; watch pelvis rotation extremes.
`transition`	Gait-to-gait transitions	`walk_to_run`, `stair_to_walk`, `turn`	0% key event of departing gait (e.g., heel strike), 100% first event of target gait	`transition_from`, `transition_to`, `gait_transition`	A single stride may cover two behaviors; store context keys and treat directions separately.
`sit_to_stand` / `stand_to_sit`	Chair or box transfers	`sit_to_stand`, `stand_to_sit`	0% motion onset (velocity > 25 deg/s), 100% stable end state. GRF: sitting < 400N, standing > 600N.	`chair_height`, `armrests`, `variant`	See Sitting ↔ Standing archetype below.
`squat`	Loaded or bodyweight squats	`squat`, `squat_bodyweight`, `squat_25lbs`	0% stable standing, ~50% lowest depth, 100% stable standing.	`weight_lbs`, `variant`	See Standing → Action → Standing archetype below.
`step_up` / `step_down`	Stair-box repetitions, curbs	`step_up`, `step_down`	Step-up: 0% initial foot contact on box, 100% full weight on box. Step-down mirrors with lower surface contact.	`height_m`, `lead_leg`, `step_number`	Treat like short stair runs; ensure cadence is repeatable before phase export.
`jump`	Bilateral vertical/lateral jumps	`jump_vertical`, `jump_lateral`	0% stable standing, ~50% flight phase (GRF < 50N), 100% stable standing.	`jump_type`, `variant`	See Standing → Action → Standing archetype below.
`hop`	Unilateral (single-leg) repeated hops	`hop_single`, `hop_forward`, `hop_lateral`	0% ipsilateral contact, 100% next ipsilateral contact.	`lead_leg`, `variant`, `direction`	Cyclic single-leg movement; segment contact-to-contact on same leg.
`lunge`	Forward or lateral lunges	`lunge_forward`, `lunge_lateral`, `lunge_walking`	0% stable standing, ~50% lowest depth, 100% return to standing.	`direction`, `variant`, `load_kg`	See Standing → Action → Standing archetype below.
`weighted_walk`, `dynamic_walk`, `walk_backward`	Walking variants with perturbations	`level`, `variant:<string>`	Same as level walking (HS-to-HS) when heel strikes are present	`speed_m_s`, `treadmill`, `variant`	Prefer phase when heel strikes exist; otherwise document perturbation under `variant`.

Segmentation Archetypes¶

Phase-friendly tasks use one of three segmentation archetypes:

Heel Strike to Heel Strike (Gait)¶

Gait tasks are segmented using ipsilateral heel strikes as cycle boundaries:

Ipsi Heel Strike → Ipsi Stance → Ipsi Toe Off → Ipsi Swing → Ipsi Heel Strike
       0%              0-60%          ~60%         60-100%         100%

Phase (%)	Event
0%	Ipsilateral heel strike (initial contact)
~10%	Foot flat (loading response complete)
~30%	Midstance (single-limb support)
~50%	Contralateral heel strike
~60%	Ipsilateral toe off (swing begins)
100%	Next ipsilateral heel strike

Heel strike detection uses GRF threshold crossings (typically 20-50N). When GRF is unavailable, use foot velocity minima or shank angle.

Applies to: level_walking, incline_walking, decline_walking, stair_ascent, stair_descent, run, walk_backward, hop

Standing → Action → Standing¶

Tasks that begin and end in stable standing, with a discrete action in between. Stable standing requires GRF > 600N AND joint velocity < 25 deg/s.

Jump (jump):

Stable Standing → Countermovement → Takeoff → Flight → Landing → Stable Standing
       0%            ~20-40%        ~40-50%   ~50-60%   ~60-80%       100%

Parameter	Value	Description
FlightThreshold	50 N	GRF below which subject is in flight
StandingThreshold	600 N	GRF above which subject is standing
VelocityThreshold	25 deg/s	Joint velocity below which motion is stable

Squat (squat):

Stable Standing → Descent → Lowest Depth → Ascent → Stable Standing
       0%          ~25%         ~50%        ~75%        100%

Same detection parameters as jump, but no flight phase. Segment boundaries at stable standing states.

Lunge (lunge):

Stable Standing → Forward Step → Lowest Depth → Return Step → Stable Standing
       0%            ~25%           ~50%           ~75%           100%

Same detection parameters as squat. Forward lunges involve asymmetric loading; record lead_leg and direction metadata. Walking lunges may use stride-based segmentation instead.

Sitting ↔ Standing Transfers¶

Tasks that transition between seated and standing states using GRF-based state detection combined with joint velocity thresholds.

Sit-to-stand (sit_to_stand):

Stable Sitting → Motion Onset → Rising → Motion Offset → Stable Standing
                      0%                                      100%

Stand-to-sit (stand_to_sit):

Stable Standing → Motion Onset → Lowering → Motion Offset → Stable Sitting
                       0%                                        100%

Parameter	Value	Description
SittingThreshold	400 N	GRF below which subject is sitting
StandingThreshold	600 N	GRF above which subject is standing
VelocityThreshold	25 deg/s	Joint velocity threshold for motion onset/offset

Motion onset is detected when joint velocity exceeds 25 deg/s; motion offset when it drops below.

Time-Indexed (Non-Cyclic) Families¶

Export these tasks as time-indexed episodes. They lack consistent heel-strike structure, involve perturbations that break cyclic assumptions, or represent single-shot activities. If future datasets introduce segmentation for any of these behaviors, they can graduate to the phase-friendly group.

Task	Typical behaviors	Example activities / `task_id`	Required metadata	Notes
`agility_drill`	Multi-directional or cadence-driven drills without steady gait cycles	`side_shuffle`, `tire_run`, `dynamic_walk_high_knees`, `turn_and_step_left`	`variant`, `direction`, `cadence_hz`, `surface`	Capture cueing or treadmill settings; use when strides vary too much for phase export.
`cutting`	Athletic cuts with large heading changes	`cutting_left_fast`, `cutting_right_slow`	`direction`, `approach_speed_m_s`, `turn_angle_deg`, `surface`	Keep entire maneuver in time to preserve path-dependent kinetics.
`free_walk_episode`	Episodic or exploratory walking sequences	`meander`, `start_stop`, `obstacle_walk`	`surface`, `segment_start_s`, `segment_end_s`, `treadmill`	Use for trials with frequent pauses/obstacles where heel-strike segmentation is unreliable.
`load_handling`	Asymmetric lifts, carries, or object exchanges	`lift_weight_25lbs_l_c`, `ball_toss_center`	`load_kg`, `hand`, `pickup_height`, `dropoff_height`, `direction`	Document object mass and interaction side so bias/torque effects are traceable.
`perturbation`	External pushes/pulls or cooperative force tasks	`push_forward`, `tug_of_war`, `twister`	`direction`, `magnitude`, `support`, `implements`	Distinguish voluntary vs. reactive responses via metadata (e.g., `initiated_by:experimenter`).
`balance_pose`	Static or quasi-static holds	`poses_single_leg`, `poses_wide_stance`, `squat_hold`	`variant`, `duration_s`, `support`	Useful for calibration and balance assessments; ensure durations cover full hold.
`functional_task`	Miscellaneous non-cyclic behaviors not covered above	`variant:<string>`	`variant`, contextual keys as needed	Use sparingly; prefer one of the specific families when possible.

When new datasets introduce additional behaviors, extend the table with the task family, expected metadata, and note whether improved segmentation would allow promotion to the phase-friendly bucket.

Subject Naming¶

Format: <DATASET_CODE>_<POPULATION_CODE><SUBJECT_NUMBER> → e.g., DS23_AB05, DS21_TFA03. Keep subject numbers zero-padded to two digits where possible to aid sorting.

Population codes

Code	Population	Recommended task suffix
AB	Able‑bodied	(omit)
TFA	Transfemoral amputee	`tfa`
TTA	Transtibial amputee	`tta`
CVA	Stroke	`stroke` or `cva`
PD	Parkinson’s	`pd`
SCI	Spinal cord injury	`sci`
CP	Cerebral palsy	`cp`
TKA	Total knee arthroplasty	`tka`
THA	Total hip arthroplasty	`tha`
MS	Multiple sclerosis	`ms`

Subject Metadata¶

Optional demographics and clinical context stored in subject_metadata as comma‑separated key:value pairs.

Common keys

age:<int>
sex:<M|F|Other>
height_m:<float>
weight_kg:<float>
leg_dominance:<left|right|unknown>
impairment:<string> (e.g., stroke, pd, sci)
prosthesis_type:<string> (e.g., TFA, TTA)
prosthesis_side:<ipsi|contra|left|right>
clinical_scores:<string> (e.g., FuglMeyer:28)
notes:<string> (short free text)

Variables (What Columns Mean)¶

Naming pattern: - Joint/segment variables: <joint/segment>_<motion>_<measurement>_<side>_<unit> - GRF / CoP variables: <signal_type>_<axis>_<side>_<unit> (e.g., grf_vertical_ipsi_BW, cop_anterior_contra_m)

Key categories

Kinematics (angles): *_angle_*_rad
Kinetics (moments/forces): *_moment_*_Nm_kg (mass-normalized)
Ground reaction forces (GRF): *_grf_*_BW (body-weight-normalized)
Segment orientations: pelvis_*_angle_rad, trunk_*_angle_rad, thigh_*_angle_*_rad, shank_*_angle_*_rad, foot_*_angle_*_rad
Electromyography (EMG): emg_*_pMVC (MVC-normalized) or emg_*_pMax (peak-normalized)

Sides

ipsi: limb that defines phase (phase_ipsi is 0% at its heel strike)
contra: opposite limb (≈ 50% phase offset in level walking)

Units

Angles in radians (*_rad)
Moments are mass‑normalized (*_Nm_kg)
GRFs are body‑weight‑normalized (*_BW)
EMG is normalized (*_pMVC for % of MVC, *_pMax for % of trial max)

Column Catalog¶

Canonical Python lists live in src/locohub/feature_constants.py (PHASE_CANONICAL_COLUMNS, TIME_CANONICAL_COLUMNS, and CANONICAL_COLUMN_GROUPS) to keep converters, validators, and docs aligned.

Complete list of standard column names used in the conversion scripts and examples. Columns are grouped by category; sides are ipsi and contra unless noted.

Required schema: subject, subject_metadata, task, task_id, task_info, step, phase_ipsi (phase‑indexed) or time_s (time‑indexed)
Optional schema: phase_contra, dataset, collection_date, processing_date

Kinematics — joint angles (radians)

hip_flexion_angle_{ipsi,contra}_rad
hip_adduction_angle_{ipsi,contra}_rad
knee_flexion_angle_{ipsi,contra}_rad
ankle_dorsiflexion_angle_{ipsi,contra}_rad

Kinetics — joint moments (Nm/kg)

These represent the total net joint moment from inverse dynamics. This is the sum of biological (human muscle) and assistance (exoskeleton/device) contributions. For datasets without assistive devices, total moment equals biological moment.

Relationship: total moment = biological moment + assistance moment

hip_flexion_moment_{ipsi,contra}_Nm_kg
knee_flexion_moment_{ipsi,contra}_Nm_kg
ankle_dorsiflexion_moment_{ipsi,contra}_Nm_kg

Kinetics — assistance moments (Nm/kg)

External assistance torque provided by an exoskeleton or other assistive device. When assistance_active is true, these values represent torques actually applied to the joint. When false, these are simulated/estimated values (e.g., from a model running in the background but not commanding the actuators).

hip_flexion_assistance_moment_{ipsi,contra}_Nm_kg
knee_flexion_assistance_moment_{ipsi,contra}_Nm_kg
ankle_dorsiflexion_assistance_moment_{ipsi,contra}_Nm_kg

Kinetics — biological moments (Nm/kg)

The moment produced by human muscles only. For exoskeleton data, this is the total moment minus the assistance contribution. Only present when assistance data is available to compute it.

hip_flexion_biological_moment_{ipsi,contra}_Nm_kg
knee_flexion_biological_moment_{ipsi,contra}_Nm_kg
ankle_dorsiflexion_biological_moment_{ipsi,contra}_Nm_kg

Segment/link orientations (radians)

Pelvis: pelvis_sagittal_angle_rad, pelvis_frontal_angle_rad, pelvis_transverse_angle_rad
Trunk: trunk_sagittal_angle_rad, trunk_frontal_angle_rad, trunk_transverse_angle_rad
Thigh: thigh_sagittal_angle_{ipsi,contra}_rad
Shank: shank_sagittal_angle_{ipsi,contra}_rad
Foot: foot_sagittal_angle_{ipsi,contra}_rad

Angular velocities (radians/second)

hip_flexion_velocity_{ipsi,contra}_rad_s
knee_flexion_velocity_{ipsi,contra}_rad_s
ankle_dorsiflexion_velocity_{ipsi,contra}_rad_s

Angular accelerations (radians/second^2)

hip_flexion_acceleration_{ipsi,contra}_rad_s2
knee_flexion_acceleration_{ipsi,contra}_rad_s2
ankle_dorsiflexion_acceleration_{ipsi,contra}_rad_s2

Ground reaction forces (BW)

Vertical: grf_vertical_{ipsi,contra}_BW
Anterior–posterior: grf_anterior_{ipsi,contra}_BW
Medio–lateral: grf_lateral_{ipsi,contra}_BW

Center of pressure (meters)

cop_anterior_{ipsi,contra}_m
cop_lateral_{ipsi,contra}_m

Electromyography — EMG (normalized)

Surface EMG signals from lower limb muscles. Values are normalized to facilitate cross-subject comparison:

MVC-normalized (_pMVC): Percentage of Maximum Voluntary Contraction (0-100+%)
Peak-normalized (_pMax): Percentage of maximum value during trial (0-100%)

Muscle naming convention: emg_<muscle>_{ipsi,contra}_<normalization>

Core lower limb muscles:

Tibialis anterior: emg_tibialis_anterior_{ipsi,contra}_pMVC
Gastrocnemius medial: emg_gastrocnemius_medial_{ipsi,contra}_pMVC
Gastrocnemius lateral: emg_gastrocnemius_lateral_{ipsi,contra}_pMVC
Soleus: emg_soleus_{ipsi,contra}_pMVC
Rectus femoris: emg_rectus_femoris_{ipsi,contra}_pMVC
Vastus lateralis: emg_vastus_lateralis_{ipsi,contra}_pMVC
Vastus medialis: emg_vastus_medialis_{ipsi,contra}_pMVC
Biceps femoris: emg_biceps_femoris_{ipsi,contra}_pMVC
Semitendinosus: emg_semitendinosus_{ipsi,contra}_pMVC
Gluteus maximus: emg_gluteus_maximus_{ipsi,contra}_pMVC
Gluteus medius: emg_gluteus_medius_{ipsi,contra}_pMVC

Optional processing variants:

Raw filtered: emg_<muscle>_{side}_filtered_mV (bandpass filtered, in millivolts)
Linear envelope: emg_<muscle>_{side}_envelope_mV (rectified + low-pass filtered)

Notes:

EMG data should be linear envelope (rectified and low-pass filtered) unless otherwise specified
MVC normalization is preferred when available as it enables cross-subject comparison
When MVC is unavailable, peak normalization within-trial is acceptable
Unilateral EMG (e.g., right leg only) should use ipsi when right leg is ipsilateral, otherwise leave as NaN for contra

Coordinate & Sign Conventions¶

OpenSim right‑handed frames. Positive rotations follow right‑hand rule.

Hip flexion (+): thigh forward; Knee flexion (+): heel toward buttocks
Ankle dorsiflexion (+): toes up; Pelvis sagittal (+): anterior tilt

Row & Phase/Time Semantics¶

Each row = one sample within a step/cycle for a subject+task.
Phase‑indexed: phase_ipsi runs 0→100% in each gait cycle of the ipsilateral limb (150 samples).
Contra limb is approximately 50% offset in level walking.
Time‑indexed: time_s increases monotonically; cycles delimited by gait events.

GRF & CoP Variables¶

GRF components: grf_vertical_*, grf_anterior_*, grf_lateral_* with suffix _BW or _N.
Center of pressure: cop_anterior_*_m, cop_lateral_*_m, cop_vertical_*_m (meters), side‑specific where applicable.

Expected GRF Patterns During Gait¶

Ground reaction forces follow characteristic patterns during the gait cycle. Understanding these patterns helps verify data quality and sign conventions.

Vertical GRF (grf_vertical_*_BW): Classic "M" shape during stance phase.

Phase (%)	Pattern	Description
0%	~0.5 BW	Initial contact (heel strike)
10-15%	~1.1-1.2 BW	First peak (loading response)
30%	~0.8 BW	Valley (midstance, body vaulting over limb)
45-50%	~1.1-1.2 BW	Second peak (terminal stance)
60%	~0 BW	Toe off (swing begins)

Anterior GRF (grf_anterior_*_BW): Biphasic braking-propulsion pattern.

Phase (%)	Sign	Description
0-25%	Negative	Braking phase: force opposes forward motion (decelerates body)
25-30%	~0	Crossover point
30-60%	Positive	Propulsion phase: force accelerates body forward

Sign convention: Positive = propulsion (forward force on body), Negative = braking.

Lateral GRF (grf_lateral_*_BW): "C" shape pattern directing force toward body midline.

Phase (%)	Pattern	Description
0-15%	Rising medial	Loading response
15-30%	Peak medial	Single-limb support, lateral stabilization
30-60%	Declining	Transition through push-off

Sign convention: Positive = medial (toward body midline for ipsilateral limb).

Expected COP Patterns During Gait¶

Center of pressure tracks the progression of force application through the foot during stance. Values are stride-relative (zeroed at heel strike position).

Anterior COP (cop_anterior_*_m): Heel-to-toe progression.

Phase (%)	Pattern	Description
0%	~0 m	Heel strike (reference point)
0-15%	Slight negative	Initial contact may be slightly posterior to reference
15-60%	Progressive increase	COP advances from heel toward toe
50-60%	+0.2 to +0.3 m	Forefoot/toe region at push-off

Sign convention: Positive = forward (toe direction), values increase from heel (~0) to toe (~0.25m) through stance.

Lateral COP (cop_lateral_*_m): Medial-lateral progression.

Phase (%)	Pattern	Description
0-15%	Near zero	Heel contact, lateral heel position
15-40%	Slight medial shift	Weight transfer toward midline
40-60%	Return toward neutral	Push-off through medial forefoot
