Tutorials

Do the tasks below. Pick your environment once and the page follows your choice.

Select your language:

Python MATLAB

Test Dataset

Use this small sample to try the tutorials quickly:

Download Example CSV (1000 rows)

Prefer this CSV for all examples below so the tutorial is self-contained. You can also use the full parquet datasets linked on the homepage.

Environment

• Version: 3.9–3.12 (tested 3.11)

• Packages:

• pandas >= 1.5

• numpy >= 1.23
• matplotlib >= 3.6
• pyarrow >= 12 (optional; for parquet)

• Version: R2021b+ (tested R2023b)

• Functions used:

• readtable

• parquetread (optional; for full parquet datasets)
• exportgraphics (optional)

1) Load Data

RawLibrary

import pandas as pd
import numpy as np

# Load the provided CSV (phase-indexed; 150 samples per cycle)
df = pd.read_csv('locohub_example_data.csv')
# Or load a full parquet dataset: df = pd.read_parquet('umich_2021_phase.parquet')
print(df.shape)

# Inspect structure
print(df.columns.tolist()[:10])
print(df.dtypes.head())

# Filter to one subject + task
subset = df[(df['task'] == 'level_walking') & (df['subject'] == 'UM21_AB01')]

# Extract arrays for analysis/plotting
phase = subset['phase_ipsi'].to_numpy()
knee  = subset['knee_flexion_angle_ipsi_rad'].to_numpy()

% Load the provided CSV (phase-indexed; 150 samples per cycle)
T = readtable('locohub_example_data.csv');
% Or load a full parquet dataset: T = parquetread('umich_2021_phase.parquet');
size(T)  % rows x columns

% Inspect structure
T.Properties.VariableNames(1:10)
varfun(@class, T(1,:), 'OutputFormat','table')

% Filter to one subject + task
subset = T(T.task == "level_walking" & T.subject == "UM21_AB01", :);

% Extract arrays for analysis/plotting
phase = subset.phase_ipsi;
knee  = subset.knee_flexion_angle_ipsi_rad;

from locohub import LocomotionData

# Note: LocomotionData works with parquet files.
# For a self-contained tutorial, use the CSV examples above.
data = LocomotionData('umich_2021_phase.parquet')
print(data.shape)            # rows, columns
print(data.get_variables()[:10])

# Filter and extract cycles (3D array: n_cycles x 150 x n_features)
subset = data.filter(task='level_walking', subjects=['UM21_AB01'])
cycles, features = subset.get_cycles('UM21_AB01', 'level_walking')

# Convenience arrays for a single feature
knee_idx = features.index('knee_flexion_angle_ipsi_rad')
knee_cycles = cycles[:, :, knee_idx]

addpath('user_libs/matlab');
% Note: LocomotionData works with parquet files.
% For a self-contained tutorial, use the CSV examples above.
loco  = LocomotionData('umich_2021_phase.parquet');
[rows, cols] = loco.getShape()

% Filter and extract cycles (n_cycles x 150 x n_features)
level = loco.filterTask('level_walking').filterSubject('UM21_AB01');
[cycles, features] = level.getCycles('UM21_AB01', 'level_walking');

% Convenience arrays for a single feature
kneeIdx = find(strcmp(features,'knee_flexion_angle_ipsi_rad'));
kneeCycles = squeeze(cycles(:, :, kneeIdx));

2) Filter / Subset

RawLibrary

import pandas as pd

# Load dataset (CSV provided in repo)
df = pd.read_csv('locohub_example_data.csv')

# Filter by subject + task + columns
cols = ['subject','task','phase_ipsi','knee_flexion_angle_ipsi_rad']
subset = df.loc[(df.task=='level_walking') & (df.subject=='UM21_AB01'), cols]

# Multiple tasks
walking = df[df['task'].isin(['level_walking','incline_walking','decline_walking'])]

# First N cycles per subject-task
def first_n_cycles(x, n=5):
    return x[x['cycle_id'].isin(x['cycle_id'].unique()[:n])]
first5 = df.groupby(['subject','task'], group_keys=False).apply(first_n_cycles, n=5)

% Load dataset (CSV provided in repo)
T = readtable('locohub_example_data.csv');

% Filter by subject + task + columns
cols = {'subject','task','phase_ipsi','knee_flexion_angle_ipsi_rad'};
mask = T.task=="level_walking" & T.subject=="UM21_AB01";
subset = T(mask, cols);

% Multiple tasks
maskWalk = ismember(T.task, {"level_walking","incline_walking","decline_walking"});
walking = T(maskWalk, :);

% First N cycles per subject-task
% (Example using cycle_id if available)
% See detailed MATLAB tutorial for grouping utilities.

from locohub import LocomotionData
data = LocomotionData('umich_2021_phase.parquet')

# Filter by subject + task + features
subset = data.filter(task='level_walking', subjects=['UM21_AB01'],
                     features=['knee_flexion_angle_ipsi_rad'])

# Multiple tasks
walking = data.filter(tasks=['level_walking','incline_walking','decline_walking'])

# First N cycles per subject-task
first5 = data.get_first_n_cycles(n=5)

addpath('user_libs/matlab');
loco = LocomotionData('umich_2021_phase.parquet');
level = loco.filterTask('level_walking').filterSubject('UM21_AB01');

% Filter by subject + task + features
subset = level.selectFeatures({'knee_flexion_angle_ipsi_rad'});

% Multiple tasks (re-load or filter from loco)
walking = loco.filterTasks({"level_walking","incline_walking","decline_walking"});

% First N cycles per subject-task
first5 = loco.getFirstNCycles(5);

3) Visualize

RawLibrary

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt

# Load + filter (CSV provided in repo)
df = pd.read_csv('locohub_example_data.csv')
subset = df[(df['task'] == 'level_walking') & (df['subject'] == 'UM21_AB01')]

# Mean ± SD band over phase
mean_knee = subset.groupby('phase_ipsi')['knee_flexion_angle_ipsi_rad'].mean().to_numpy()
std_knee  = subset.groupby('phase_ipsi')['knee_flexion_angle_ipsi_rad'].std().to_numpy()
phase100  = subset['phase_ipsi'].unique()

plt.figure(figsize=(6,4))
plt.fill_between(phase100, mean_knee-std_knee, mean_knee+std_knee, alpha=0.2)
plt.plot(phase100, mean_knee, label='Knee Flex (rad)')
plt.xlabel('Gait Cycle (%)'); plt.ylabel('Knee Flexion (rad)'); plt.legend(); plt.tight_layout(); plt.show()

% Load + filter (CSV provided in repo)
T = readtable('locohub_example_data.csv');
subset = T(T.task=="level_walking" & T.subject=="UM21_AB01", :);

% Mean ± SD band over phase
[g,~,idx] = unique(subset.phase_ipsi);
mean_knee = splitapply(@mean, subset.knee_flexion_angle_ipsi_rad, idx);
std_knee  = splitapply(@std,  subset.knee_flexion_angle_ipsi_rad, idx);

figure('Position',[100,100,600,380]); hold on
fill([g; flipud(g)], [mean_knee-std_knee; flipud(mean_knee+std_knee)], [0 0.45 0.9], 'FaceAlpha',0.2,'EdgeColor','none');
plot(g, mean_knee, 'Color',[0 0.45 0.9], 'LineWidth',1.8)
xlabel('Gait Cycle (%)'); ylabel('Knee Flexion (rad)'); grid on; box on; hold off

from locohub import LocomotionData
data = LocomotionData('umich_2021_phase.parquet')
subset = data.filter(task='level_walking', subjects=['UM21_AB01'])

# Built-in phase plotter (adds mean ± SD by default)
subset.plot_phase_patterns('UM21_AB01','level_walking',['knee_flexion_angle_ipsi_rad'])

# Task comparison helper
subset.plot_task_comparison('UM21_AB01',['level_walking','incline_walking'],['knee_flexion_angle_ipsi_rad'])

addpath('user_libs/matlab');
loco = LocomotionData('umich_2021_phase.parquet');
level = loco.filterTask('level_walking').filterSubject('UM21_AB01');

% Built-in phase plotter (adds mean ± SD)
level.plotPhasePatterns('UM21_AB01','level_walking',{'knee_flexion_angle_ipsi_rad'});

% Task comparison helper
level.plotTaskComparison('UM21_AB01', {"level_walking","incline_walking"}, {'knee_flexion_angle_ipsi_rad'});

4) Plotting Results with Expected Outputs

Use the sample CSV: locohub_example_data.csv.

RawLibrary

import pandas as pd
import matplotlib.pyplot as plt

df = pd.read_csv('locohub_example_data.csv')
agg = df.groupby('phase_ipsi')['knee_flexion_angle_ipsi_rad'].agg(['mean','std']).reset_index()

plt.figure(figsize=(6,3.6))
plt.fill_between(agg['phase_ipsi'], agg['mean']-agg['std'], agg['mean']+agg['std'], alpha=0.2)
plt.plot(agg['phase_ipsi'], agg['mean'], lw=2)
plt.xlabel('Gait Cycle (%)'); plt.ylabel('Knee Flexion (rad)'); plt.tight_layout(); plt.show()

T = readtable('locohub_example_data.csv');
[g,~,idx] = unique(T.phase_ipsi);
mean_knee = splitapply(@mean, T.knee_flexion_angle_ipsi_rad, idx);
std_knee  = splitapply(@std,  T.knee_flexion_angle_ipsi_rad, idx);

figure('Position',[100,100,600,360]); hold on
fill([g; flipud(g)], [mean_knee-std_knee; flipud(mean_knee+std_knee)], [0 0.45 0.9], 'FaceAlpha',0.2,'EdgeColor','none');
plot(g, mean_knee, 'Color',[0 0.45 0.9], 'LineWidth',1.8)
xlabel('Gait Cycle (%)'); ylabel('Knee Flexion (rad)'); grid on; box on; hold off

from locohub import LocomotionData
data = LocomotionData('converted_datasets/umich_2021_phase.parquet')
subset = data.filter(task='level_walking', subjects=['UM21_AB01'])
subset.plot_phase_patterns('UM21_AB01','level_walking',['knee_flexion_angle_ipsi_rad'])

addpath('user_libs/matlab');
loco = LocomotionData('converted_datasets/umich_2021_phase.parquet');
level = loco.filterTask('level_walking').filterSubject('UM21_AB01');
level.plotPhasePatterns('UM21_AB01','level_walking',{'knee_flexion_angle_ipsi_rad'});

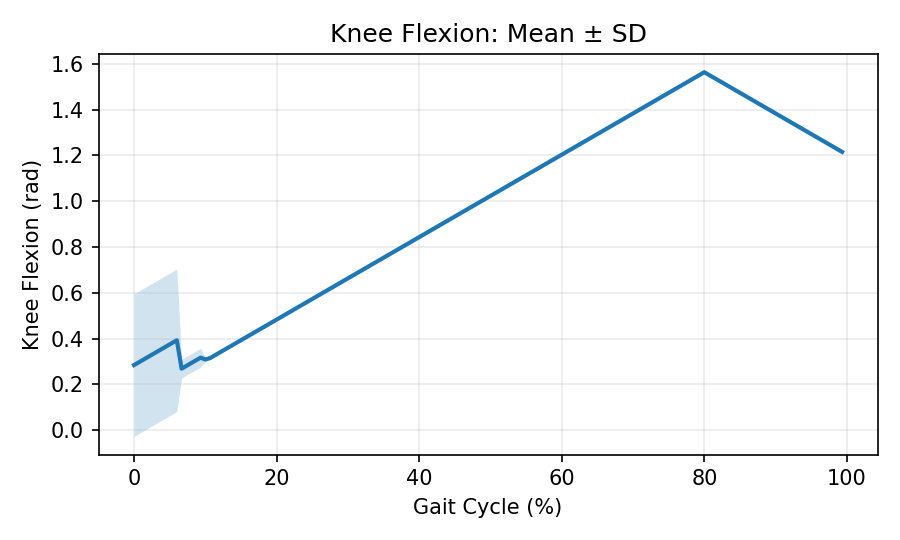

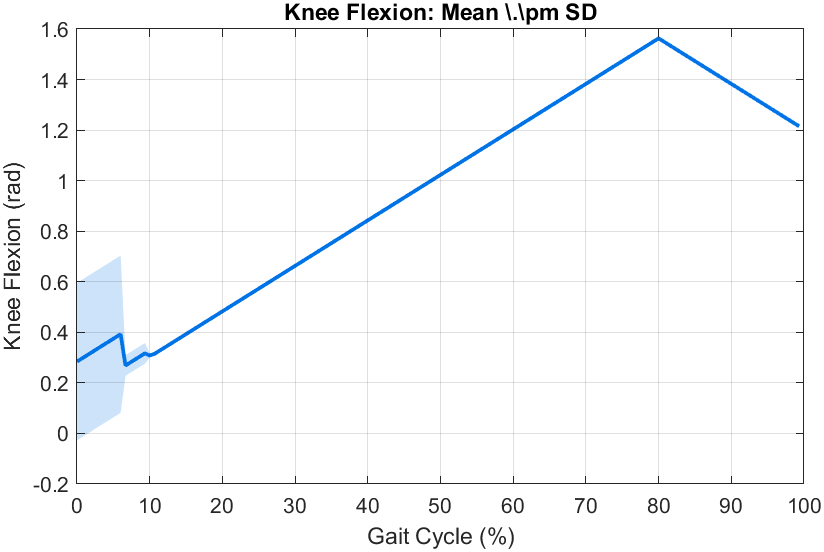

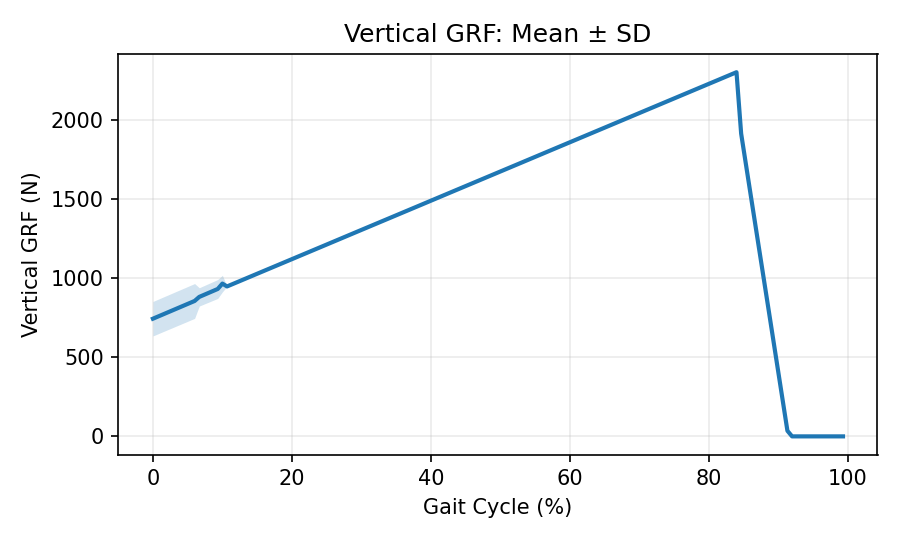

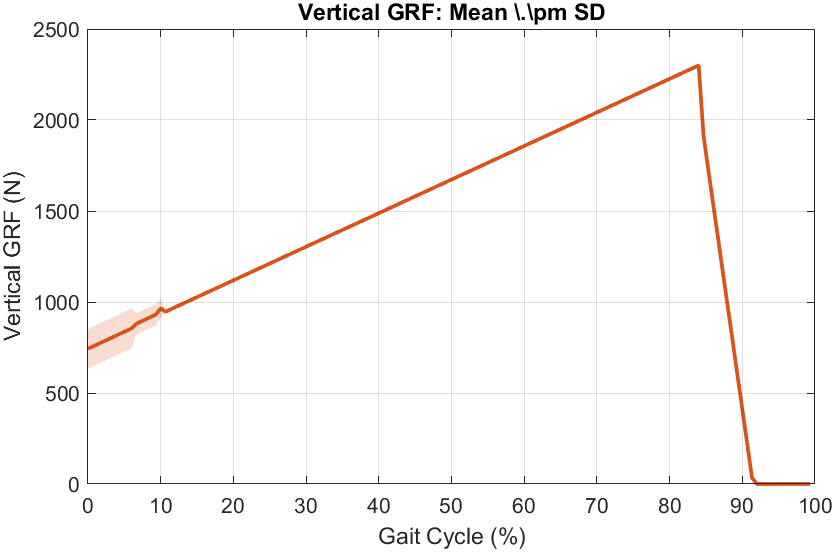

Expected outputs:

5) Parse task_info into Columns

RawLibrary

import pandas as pd

df = pd.read_csv('locohub_example_data.csv')

def parse_task_info_row(s: str) -> dict:
    if pd.isna(s) or not isinstance(s, str) or not s:
        return {}
    parts = [p.strip() for p in s.split(',') if p.strip()]
    out = {}
    for p in parts:
        if ':' in p:
            k, v = p.split(':', 1)
            k = k.strip(); v = v.strip()
            try:
                out[k] = float(v)
            except ValueError:
                out[k] = v
    return out

parsed = df['task_info'].apply(parse_task_info_row)
parsed_df = pd.json_normalize(parsed)
df_out = pd.concat([df.drop(columns=['task_info']), parsed_df], axis=1)
print(df_out[['subject','task','speed_m_s','incline_deg']].head())

T = readtable('locohub_example_data.csv');
speed_m_s = nan(height(T),1);
incline_deg = nan(height(T),1);
for i = 1:height(T)
    s = string(T.task_info{i});
    if strlength(s) == 0, continue; end
    parts = split(s, ',');
    for p = parts'
        kv = split(strip(p), ':');
        if numel(kv) ~= 2, continue; end
        key = strtrim(kv(1)); val = strtrim(kv(2));
        switch key
            case "speed_m_s", speed_m_s(i) = str2double(val);
            case "incline_deg", incline_deg(i) = str2double(val);
        end
    end
end
T.speed_m_s = speed_m_s; T.incline_deg = incline_deg;
head(T(:, {'subject','task','speed_m_s','incline_deg'}))

from locohub import LocomotionData
import pandas as pd

data = LocomotionData('converted_datasets/umich_2021_phase.parquet')
df = data.df  # Access underlying DataFrame

def parse_task_info_row(s: str) -> dict:
    if pd.isna(s) or not isinstance(s, str) or not s:
        return {}
    parts = [p.strip() for p in s.split(',') if p.strip()]
    out = {}
    for p in parts:
        if ':' in p:
            k, v = p.split(':', 1)
            k = k.strip(); v = v.strip()
            try:
                out[k] = float(v)
            except ValueError:
                out[k] = v
    return out
parsed = df['task_info'].apply(parse_task_info_row)
df_out = pd.concat([df.drop(columns=['task_info']), pd.json_normalize(parsed)], axis=1)

addpath('user_libs/matlab');
loco = LocomotionData('converted_datasets/umich_2021_phase.parquet');
% If library exposes a table, use it; otherwise, use the Raw approach
if ismethod(loco, 'asTable')
    T = loco.asTable();
else
    % Fallback: read raw parquet
    T = parquetread('converted_datasets/umich_2021_phase.parquet');
end
% Reuse parsing loop from Raw example to derive columns
% ... (same as above)

6) Merge Datasets

RawLibrary

import pandas as pd

umich = pd.read_parquet('converted_datasets/umich_2021_phase.parquet')
gtech = pd.read_parquet('converted_datasets/gtech_2021_phase.parquet')

# Harmonize key columns if needed
common = ['subject','task','phase_ipsi']
keepU = [c for c in umich.columns if ('knee_flexion' in c) or (c in common)]
keepG = [c for c in gtech.columns if ('knee_flexion' in c) or (c in common)]
umich = umich[keepU]
gtech = gtech[keepG]

merged = pd.concat([umich, gtech], ignore_index=True, sort=False)
print(merged.shape)

U = parquetread('converted_datasets/umich_2021_phase.parquet');
G = parquetread('converted_datasets/gtech_2021_phase.parquet');

common = {'subject','task','phase_ipsi'};
colsU = [common, U.Properties.VariableNames(contains(U.Properties.VariableNames,'knee_flexion'))];
colsG = [common, G.Properties.VariableNames(contains(G.Properties.VariableNames,'knee_flexion'))];
U = U(:, intersect(colsU, U.Properties.VariableNames));
G = G(:, intersect(colsG, G.Properties.VariableNames));

M = [U; G];
size(M)

from locohub import LocomotionData
import pandas as pd

umich = LocomotionData('converted_datasets/umich_2021_phase.parquet').df
gtech = LocomotionData('converted_datasets/gtech_2021_phase.parquet').df
common = ['subject','task','phase_ipsi']
keepU = [c for c in umich.columns if ('knee_flexion' in c) or (c in common)]
keepG = [c for c in gtech.columns if ('knee_flexion' in c) or (c in common)]
merged = pd.concat([umich[keepU], gtech[keepG]], ignore_index=True, sort=False)
print(merged.shape)

addpath('user_libs/matlab');
U = LocomotionData('converted_datasets/umich_2021_phase.parquet');
G = LocomotionData('converted_datasets/gtech_2021_phase.parquet');
if ismethod(U,'asTable') && ismethod(G,'asTable')
    Tu = U.asTable();
    Tg = G.asTable();
else
    Tu = parquetread('converted_datasets/umich_2021_phase.parquet');
    Tg = parquetread('converted_datasets/gtech_2021_phase.parquet');
end
common = {'subject','task','phase_ipsi'};
colsU = [common, Tu.Properties.VariableNames(contains(Tu.Properties.VariableNames,'knee_flexion'))];
colsG = [common, Tg.Properties.VariableNames(contains(Tg.Properties.VariableNames,'knee_flexion'))];
Tu = Tu(:, intersect(colsU, Tu.Properties.VariableNames));
Tg = Tg(:, intersect(colsG, Tg.Properties.VariableNames));
M = [Tu; Tg];
size(M)

7) Cycle Analysis

RawLibrary

import pandas as pd
import numpy as np

df = pd.read_csv('locohub_example_data.csv')
sub = df[(df['task']=='level_walking') & (df['subject']=='UM21_AB01')]
phase = sub['phase_ipsi'].to_numpy()
knee  = sub['knee_flexion_angle_ipsi_rad'].to_numpy()

# ROM for a single stride sequence (example)
rom = float(np.nanmax(knee) - np.nanmin(knee))

# Peak timing in the cycle
peak_idx = int(np.nanargmax(knee))
peak_phase = float(phase[peak_idx])
print({'rom': rom, 'peak_phase_ipsi': peak_phase})

% Load + filter
T = readtable('locohub_example_data.csv');
sub = T(T.task=="level_walking" & T.subject=="UM21_AB01", :);
phase = sub.phase_ipsi; knee = sub.knee_flexion_angle_ipsi_rad;

% ROM and peak timing
rom = max(knee) - min(knee);
[~,peakIdx] = max(knee);
peakPhase = phase(peakIdx);
fprintf('ROM=%.3f, Peak at %.2f%%\n', rom, peakPhase);

from locohub import LocomotionData
data = LocomotionData('umich_2021_phase.parquet')
subset = data.filter(task='level_walking', subjects=['UM21_AB01'])

# Summary statistics and ROM
stats = subset.get_summary_statistics('UM21_AB01','level_walking')
rom   = subset.calculate_rom('UM21_AB01','level_walking')

# Outlier cycles based on deviation
outliers = subset.find_outlier_cycles('UM21_AB01','level_walking', ['knee_flexion_angle_ipsi_rad'])

addpath('user_libs/matlab');
loco = LocomotionData('umich_2021_phase.parquet');
level = loco.filterTask('level_walking').filterSubject('UM21_AB01');

% Summary statistics and ROM
stats = level.getSummaryStatistics('UM21_AB01','level_walking');
rom   = level.calculateROM('UM21_AB01','level_walking');

% Outlier cycles
outliers = level.findOutlierCycles('UM21_AB01','level_walking', {'knee_flexion_angle_ipsi_rad'});

8) Group Analysis

RawLibrary

import pandas as pd
import numpy as np

df = pd.read_csv('locohub_example_data.csv')
subset = df[(df['task']=='level_walking') & (df['subject']=='UM21_AB01')]

# Group mean across all cycles of the subset
mean_knee = subset.groupby('phase_ipsi')['knee_flexion_angle_ipsi_rad'].mean().to_numpy()
std_knee  = subset.groupby('phase_ipsi')['knee_flexion_angle_ipsi_rad'].std().to_numpy()

T = readtable('locohub_example_data.csv');
subset = T(T.task=="level_walking" & T.subject=="UM21_AB01", :);

% Group mean across all cycles of the subset
[g,~,idx] = unique(subset.phase_ipsi);
mean_knee = splitapply(@mean, subset.knee_flexion_angle_ipsi_rad, idx);
std_knee  = splitapply(@std,  subset.knee_flexion_angle_ipsi_rad, idx);

from locohub import LocomotionData
data = LocomotionData('umich_2021_phase.parquet')
subset = data.filter(task='level_walking', subjects=['UM21_AB01'])

mean_patterns = subset.get_mean_patterns('UM21_AB01','level_walking')
mean_knee = mean_patterns['knee_flexion_angle_ipsi_rad']['mean']
std_knee  = mean_patterns['knee_flexion_angle_ipsi_rad']['std']

addpath('user_libs/matlab');
loco = LocomotionData('umich_2021_phase.parquet');
level = loco.filterTask('level_walking').filterSubject('UM21_AB01');
patterns = level.getMeanPatterns('UM21_AB01','level_walking');
mean_knee = patterns('knee_flexion_angle_ipsi_rad').mean;
std_knee  = patterns('knee_flexion_angle_ipsi_rad').std;

9) Export Figures and Tables

RawLibrary

import pandas as pd
import matplotlib.pyplot as plt

df = pd.read_csv('docs/tutorials/assets/locohub_example_data.csv')
sub = df[(df['task']=='level_walking') & (df['subject']=='UM21_AB01')]
phase = sub['phase_ipsi']; knee = sub['knee_flexion_angle_ipsi_rad']

fig, ax = plt.subplots(figsize=(5,3.5))
ax.plot(phase, knee, lw=1.8)
ax.set(xlabel='Gait Cycle (%)', ylabel='Knee Flexion (rad)')
fig.tight_layout(); fig.savefig('figure.png', dpi=300)

# Export summary table
summary = sub.groupby('phase_ipsi')['knee_flexion_angle_ipsi_rad'].agg(['mean','std']).reset_index()
summary.to_csv('summary_knee.csv', index=False)

T = readtable('docs/tutorials/assets/locohub_example_data.csv');
sub = T(T.task=="level_walking" & T.subject=="UM21_AB01", :);
phase = sub.phase_ipsi; knee = sub.knee_flexion_angle_ipsi_rad;
set(gcf,'Position',[100,100,520,360]);
plot(phase, knee, 'LineWidth',1.8);
xlabel('Gait Cycle (%)'); ylabel('Knee Flexion (rad)'); grid on;
print('-dpng','-r300','figure.png');

% Export summary table
[g,~,idx] = unique(sub.phase_ipsi);
mean_knee = splitapply(@mean, sub.knee_flexion_angle_ipsi_rad, idx);
std_knee  = splitapply(@std,  sub.knee_flexion_angle_ipsi_rad, idx);
summary = table(g, mean_knee, std_knee, 'VariableNames',{'phase_ipsi','mean','std'});
writetable(summary, 'summary_knee.csv');

# Library plotting exists, but fine-grained figure control is often easier with raw plotting.
from locohub import LocomotionData
data = LocomotionData('umich_2021_phase.parquet')
subset = data.filter(task='level_walking', subjects=['UM21_AB01'])
stats = subset.get_summary_statistics('UM21_AB01','level_walking')

# Export stats
import pandas as pd
pd.DataFrame(stats).to_csv('summary_stats.csv', index=False)

% Use library for quick stats export
addpath('user_libs/matlab');
loco = LocomotionData('umich_2021_phase.parquet');
level = loco.filterTask('level_walking').filterSubject('UM21_AB01');
stats = level.getSummaryStatistics('UM21_AB01','level_walking');
% Convert to table and save as needed

10) Save Filtered Subset

RawLibrary

import pandas as pd

df = pd.read_csv('locohub_example_data.csv')
filt = df[(df['task']=='level_walking') & (df['subject']=='UM21_AB01')]

# Save CSV (portable)
filt.to_csv('filtered_level_walking_UM21_AB01.csv', index=False)

# Save Parquet (compact; requires pyarrow)
# pip install pyarrow
filt.to_parquet('filtered_level_walking_UM21_AB01.parquet', index=False)

T = readtable('locohub_example_data.csv');
filt = T(T.task=="level_walking" & T.subject=="UM21_AB01", :);

% Save CSV
writetable(filt, 'filtered_level_walking_UM21_AB01.csv');

% Save Parquet (R2022a+)
parquetwrite('filtered_level_walking_UM21_AB01.parquet', filt);

from locohub import LocomotionData
data = LocomotionData('umich_2021_phase.parquet')
subset = data.filter(task='level_walking', subjects=['UM21_AB01'])

# Access underlying DataFrame then save
df = subset.df
df.to_csv('filtered_level_walking_UM21_AB01.csv', index=False)
df.to_parquet('filtered_level_walking_UM21_AB01.parquet', index=False)

addpath('user_libs/matlab');
loco = LocomotionData('umich_2021_phase.parquet');
level = loco.filterTask('level_walking').filterSubject('UM21_AB01');

% If the library exposes a table, save it; otherwise use the raw approach above.
% tbl = level.asTable(); writetable(tbl, 'filtered_level_walking_UM21_AB01.csv');

References

• Data schema: What the data looks like
• Specs: Technical Specification
